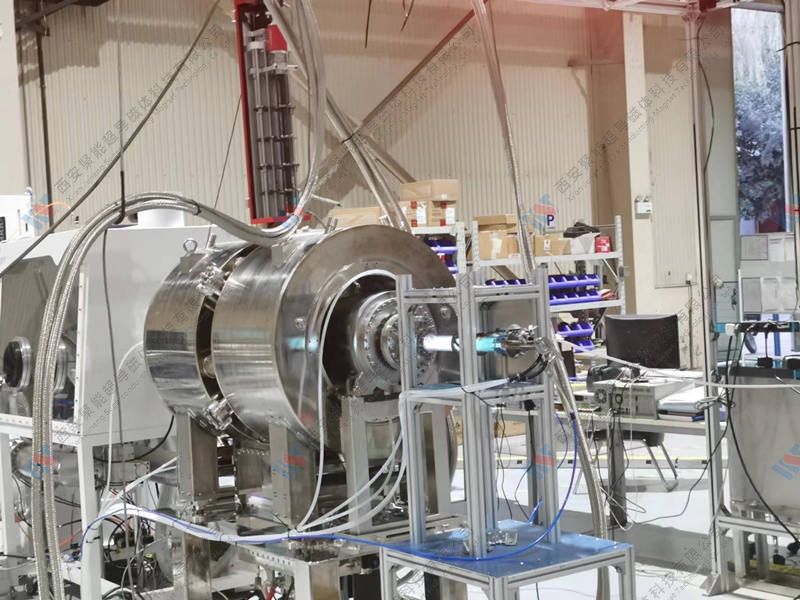

Main engine of Plasma Irradiation Experiment System (Superconductivity)
Main technical indicators:
The magnet system consists of a superconducting magnet, a gas injection system (hydrogen, helium, deuterium, argon), a plasma source (helical wave plasma source), a vacuum chamber, a sample bench, a vacuum pump set, a vacuum gauge, a Langmuir probe, a negative pressure glove box and an integrated control system.
Model: XSMT-PIES-C2T470H
Working current: 108A
Central magnetic field: 2T
Room temperature hole diameter: Φ470
Magnetic field uniformity area: Φ120mm*500mm (uniformity 3.5%)
