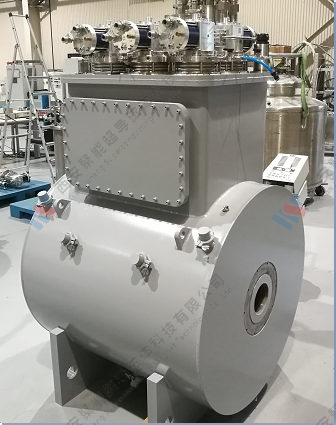

28GHz SECR ion source superconducting magnet
Main technical indicators:
Model: XSMT-L(2.0-3.6)T142H
Dimensions: Length 1044mm× width 1050mm× height 2154mm
Cooling mode: Zero volatilization of liquid helium
Working current: 309A
Central magnetic field: 4.5T
Magnetic field uniform area: the non-uniformity of the six-pole magnetic field (radius 63 mm) is less than 3% within the range of 424mm along the axis direction; The non-uniformity (radius 63 mm) of the six-pole magnetic field near the six pole heads is less than 5%;
Room temperature hole diameter: 142mm
Main Application: Superconducting magnet ion source for accelerators
