Superconducting bipolar magnet for accelerators

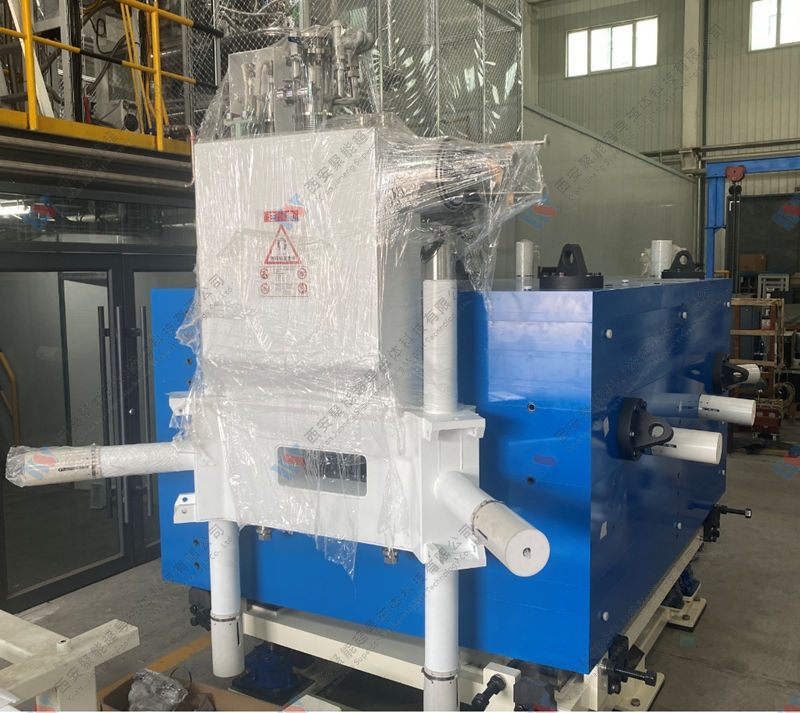

1.6T warm ferrosuperconducting bipolar ferromagnet
Main technical indicators:
Model: 1.6T
Dimensions: 2820*1086*480
Central magnetic field: 1.6T
Magnetic field uniform area: ±160*±60mm2
Working current: 197A
Direction of magnetic field: vertical
Cooling method: Liquid helium immersion
Application of magnet: plasma deflection and magnetic fluid research in accelerator system
