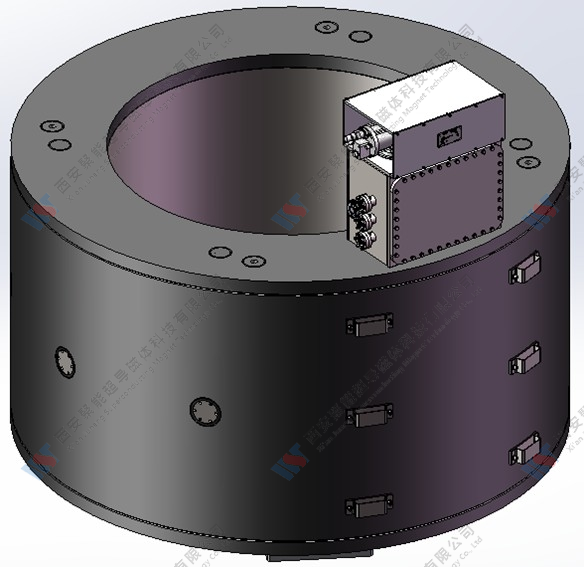

Celera monocrystalline silicon CUSP magnet


Technical performance index

Model: XSMT-0.3T1420C

Dimensions: OD2160*ID1420mm*H1210mm (total height < 2m)

Weight: < tons

Number of refrigerating machines: 2

Cooling time: about 11 days

Magnetic field strength: 0Gauss (center) ≥2000Gauss (28-inch ring, customizable)

Excitation demagnetizing time: < 30 minutes

Magnetic leakage field: < 150Gauss (1.35m from center)

                                      < 100Gauss (1.55 m from center)

                                      < 50Gauss (1.95 m from center)
