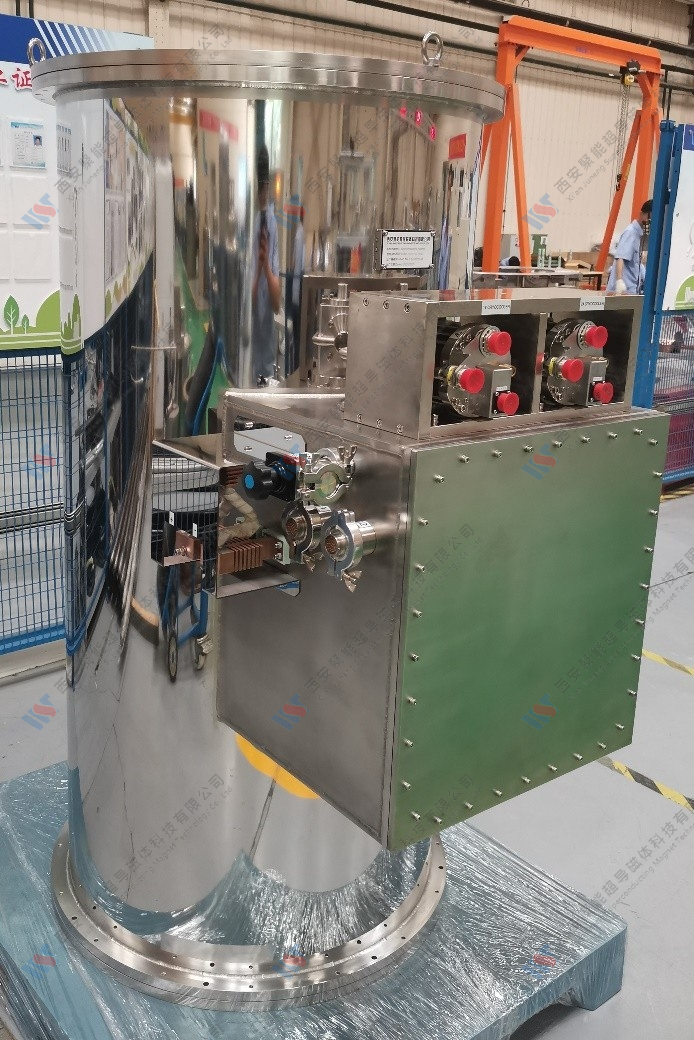

10T125 superconducting magnet
Main technical indicators
Model: XSMT-10T125-L1500
Dimensions: Length 1115.8mm* Width 822mm* height 1563mm
Cooling mode: direct cooling by refrigerator
Working current: 165.8A
Central magnetic field: 10T
Magnetic field uniform area: room temperature hole center axis within the range of ±500mm magnetic induction ≥7.4T
Room temperature hole diameter: 129
Main application: magnetization of materials
