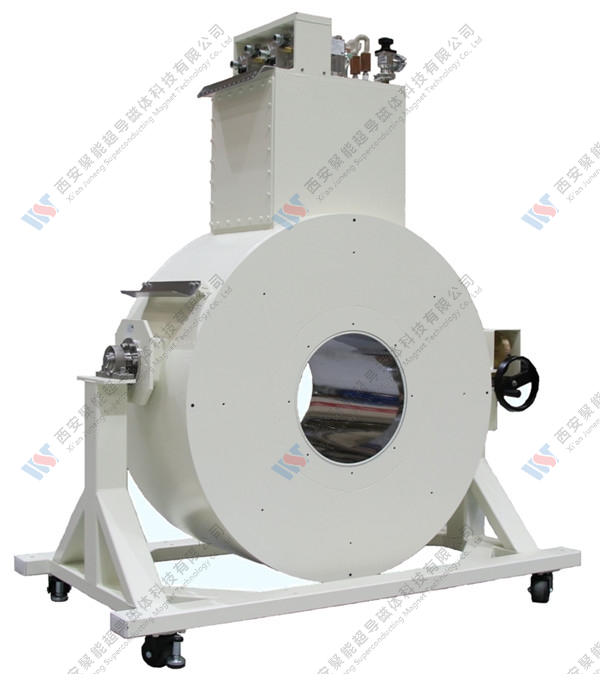

6T400 superconducting magnet
Main technical indicators:
Model: XSMT-6T400
Dimensions: Length 1751mm× width 1749mm× height 1086mm (room temperature hole vertical)
Dimensions: Length 1749mm× width 900mm× height 1885mm (room temperature hole level)
Cooling mode: direct cooling by refrigerator
Working current: 208.3A
Central magnetic field: 6T
Magnetic field uniform region:
Room temperature hole diameter: 400
Main Purpose: To provide large cavity, strong magnetic field and high gradient background magnetic field for high temperature metal melt polyphysical in-situ measurement system under high magnetic field.
