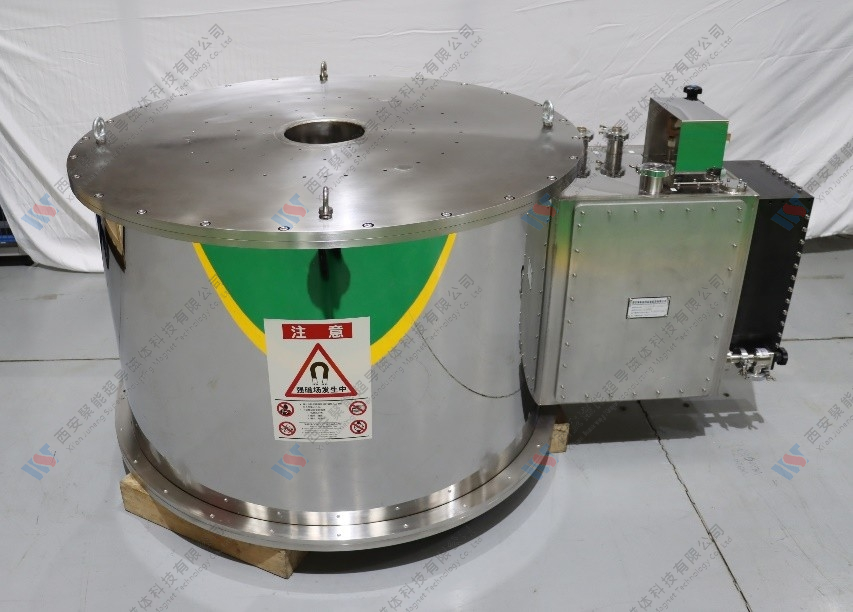

12T200 liquid helium-free superconducting magnet


Main technical index

Model number: 12T200

External dimension: φ1250*779

Cooling mode: direct cooling by refrigerator

Working current: 229.4A

Central magnetic field: 12T

Magnetic field uniform area: central axis ±35mm

Room temperature hole diameter: 200mm

Main Applications: Used for testing the background field of high temperature superconducting belt and studying the high thermal conductivity of directional growing materials under the magnetic field of carbon fiber
