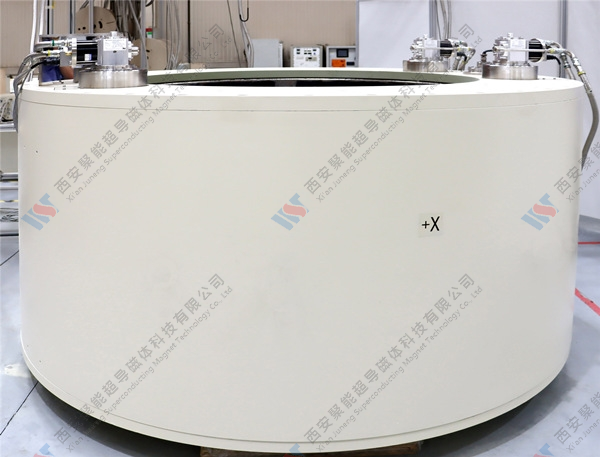

12 inch MCZ Chrysochra monocrystalline silicon magnet


Technical performance index

Model: XSMT-0.4T1600MCZ

Dimensions: OD2440mm*ID1600*H1215mm (total height < 2m)

Weight: About 11 tons

Number of refrigerating machines: 4

Cooling time: About 14 days

Direction of magnetic field: horizontal

Central magnetic field strength: 0.4T

Excitation demagnetizing time: < 30 minutes

Magnetic leakage field: < 110Gauss (3 meters away from the center)

                                      < 70Gauss (3.5 m from center)
